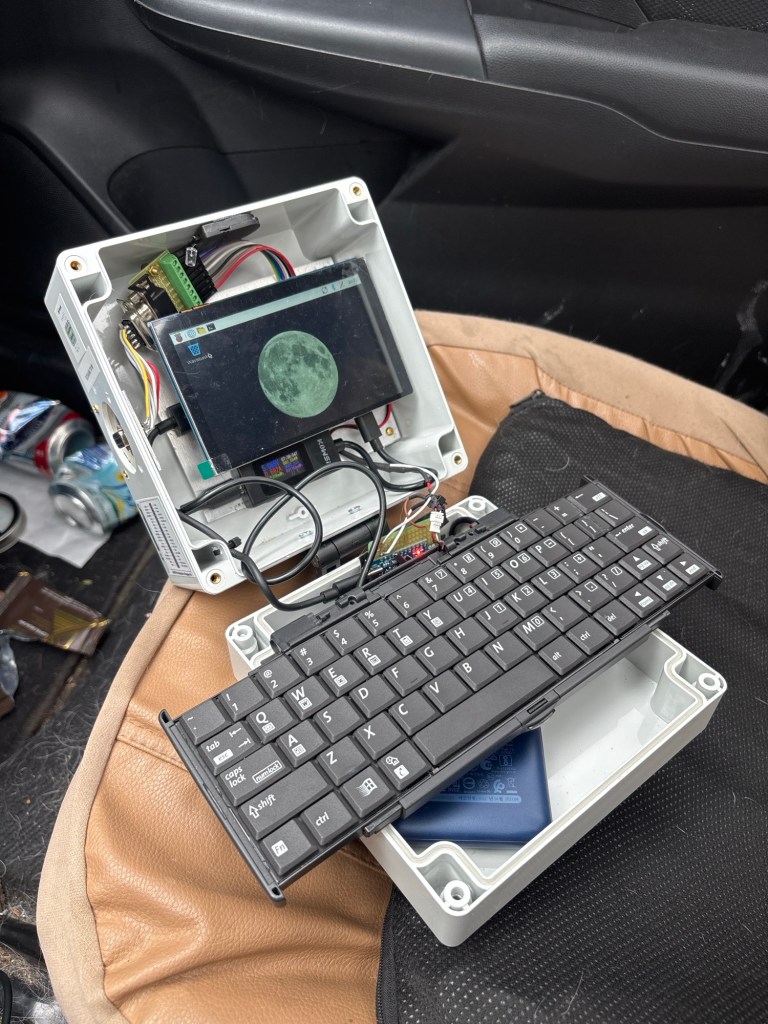

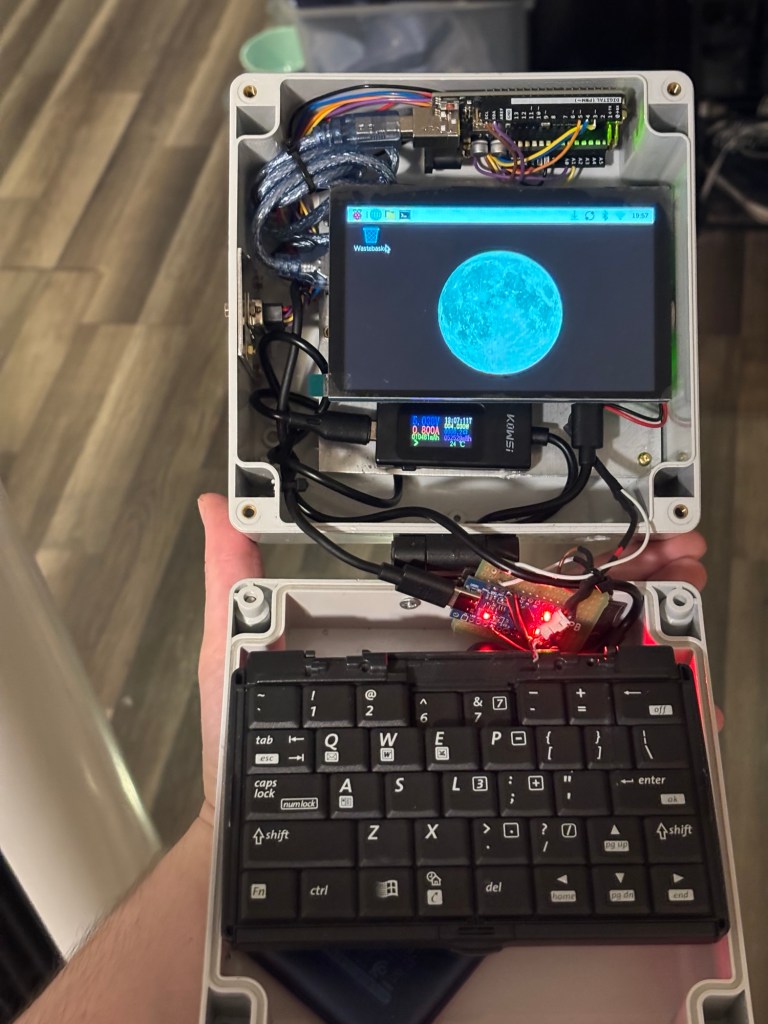

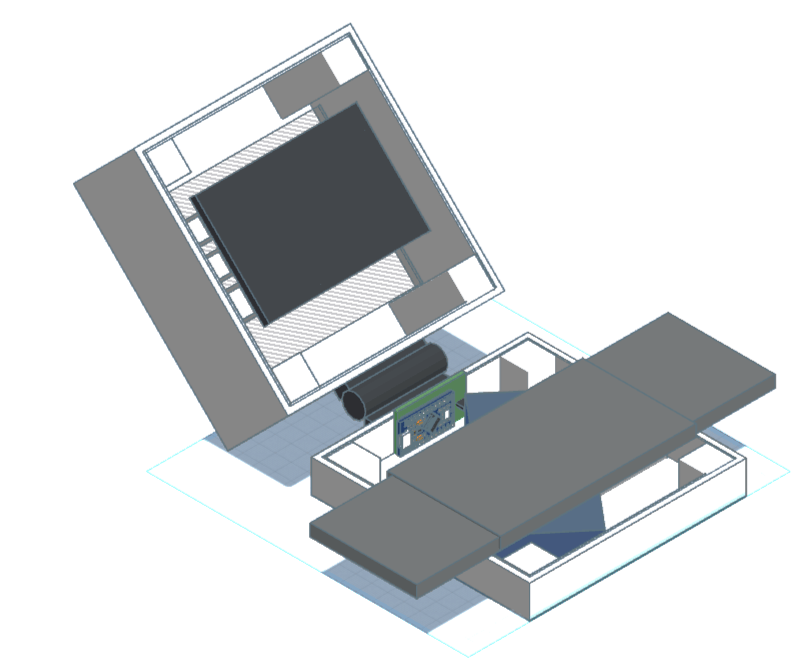

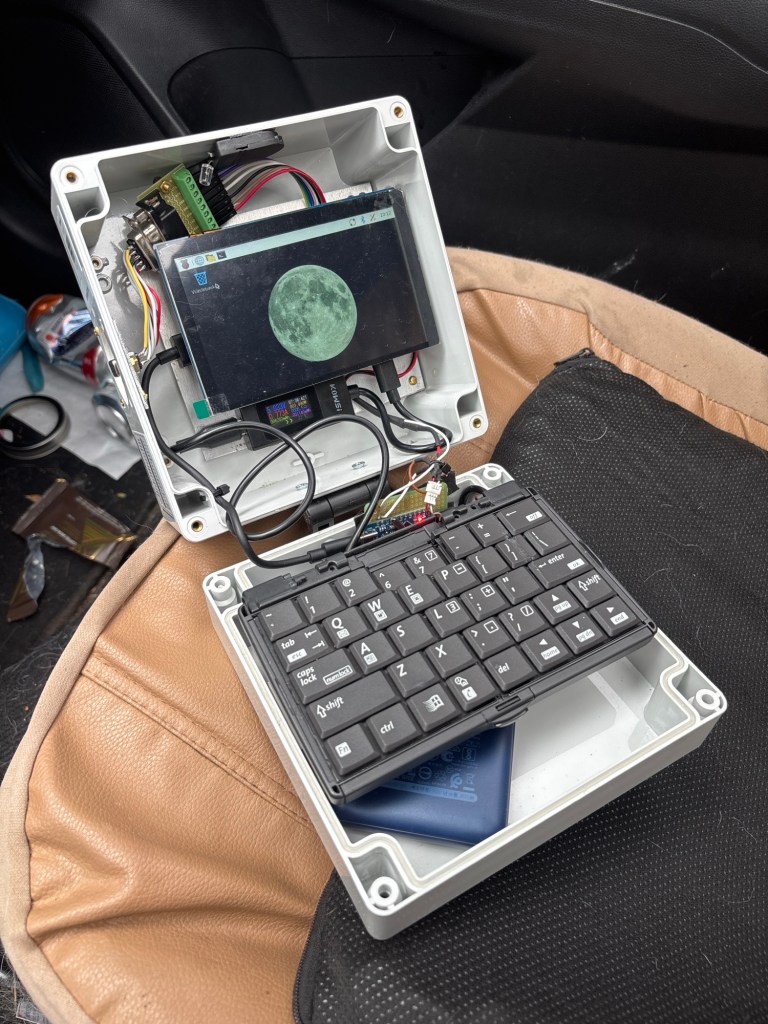

Pi5 Laptop

*ENGINEERING UNIT – PROTOTYPE
Parts list:

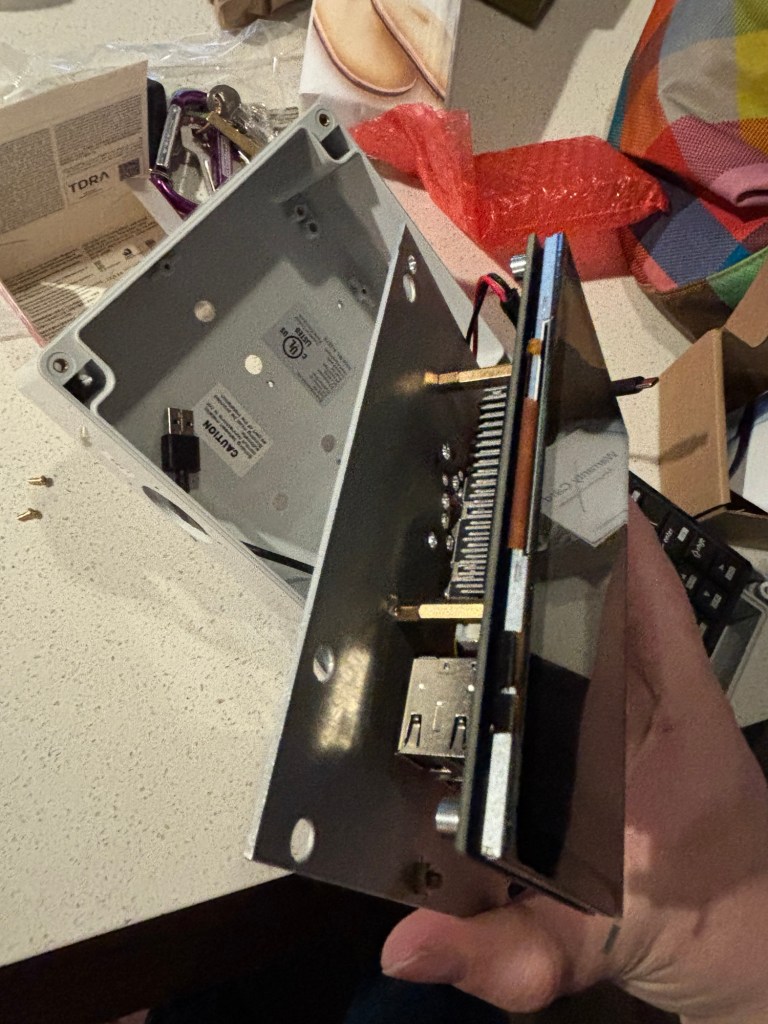

5″ capacitive touch LCD display for Raspberry pi 4B/5

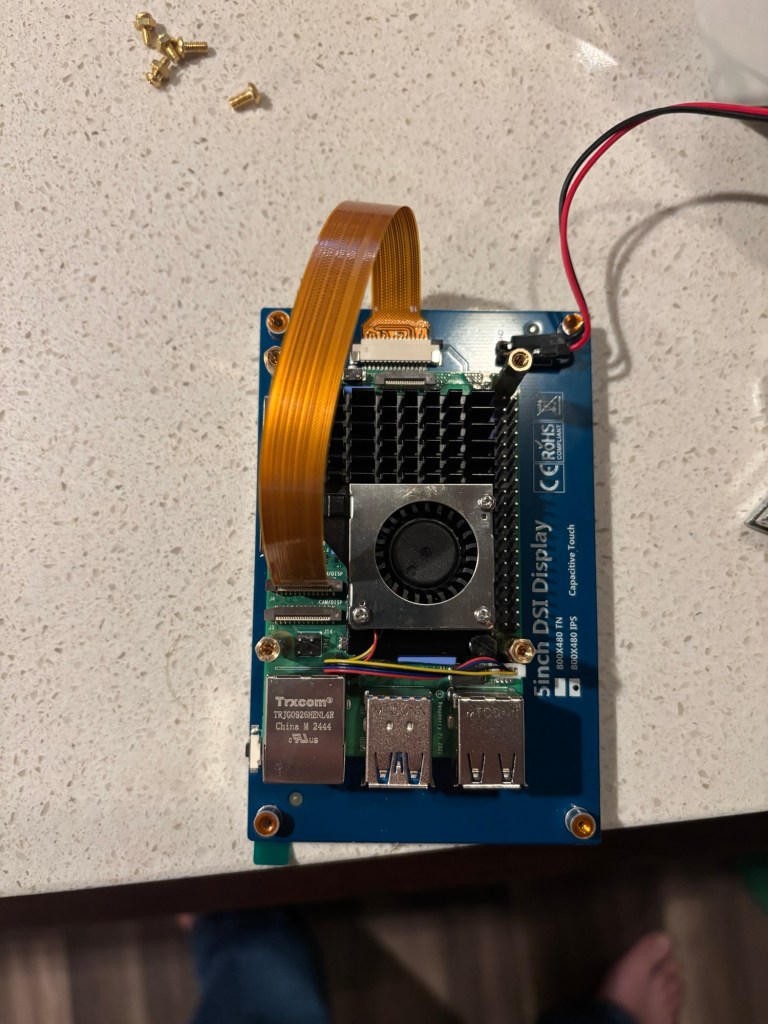

Raspberry Pi 5 with heatsink&fan

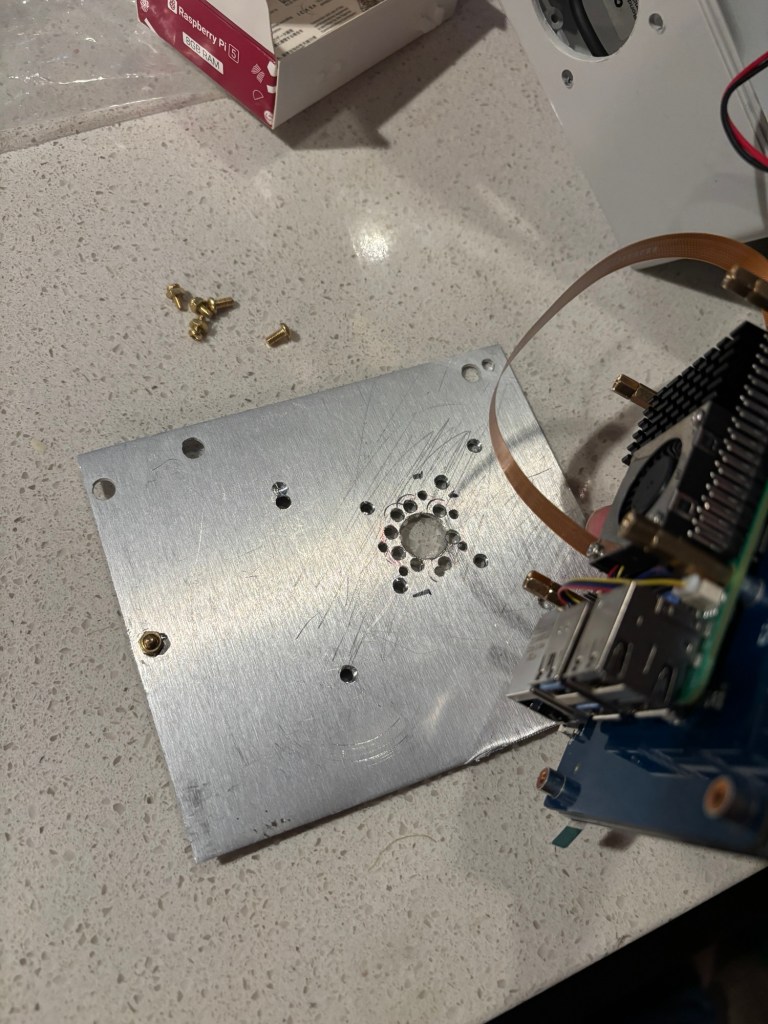

Aluminum Mounting Plate

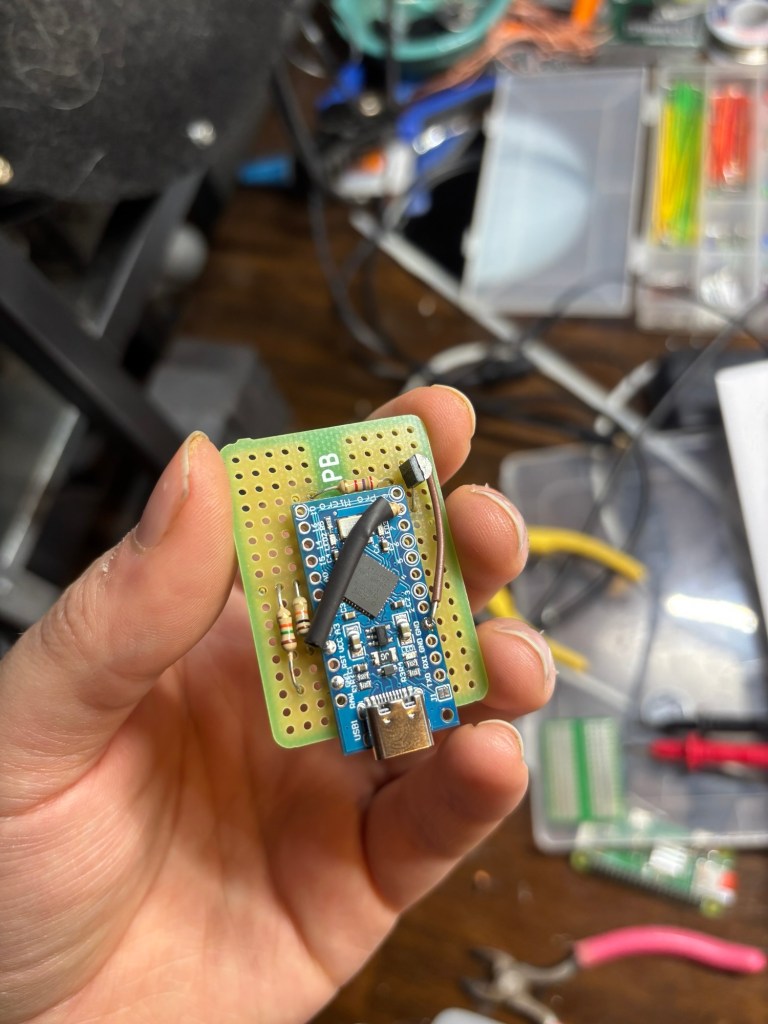

Arduino Pro Micro with single NPN/resistor-based logic inverter/3V-5V level shifter circuit

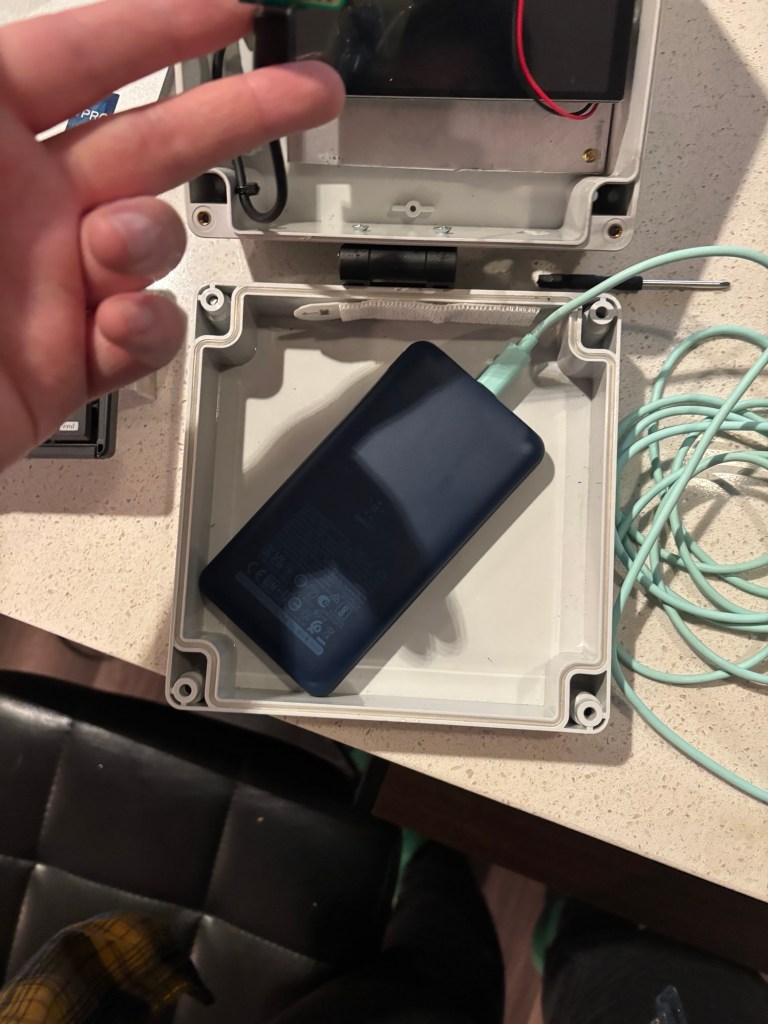

Belkin 5v 3A, 37Wh, 3.7V, 10000mAh Power Bank

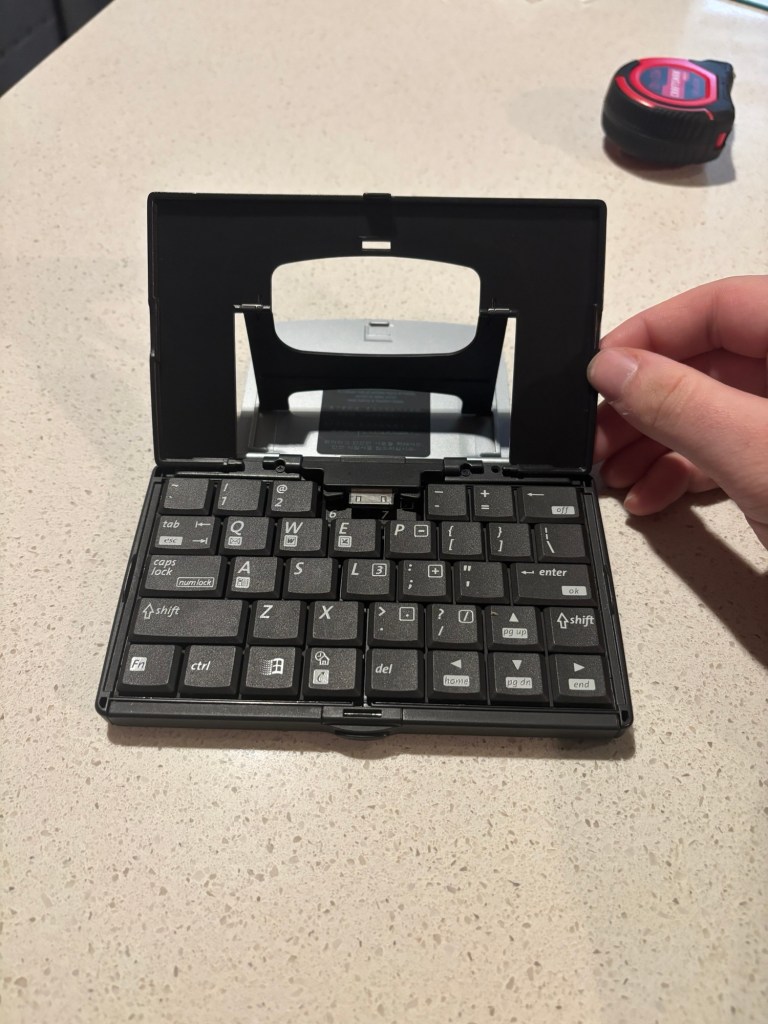

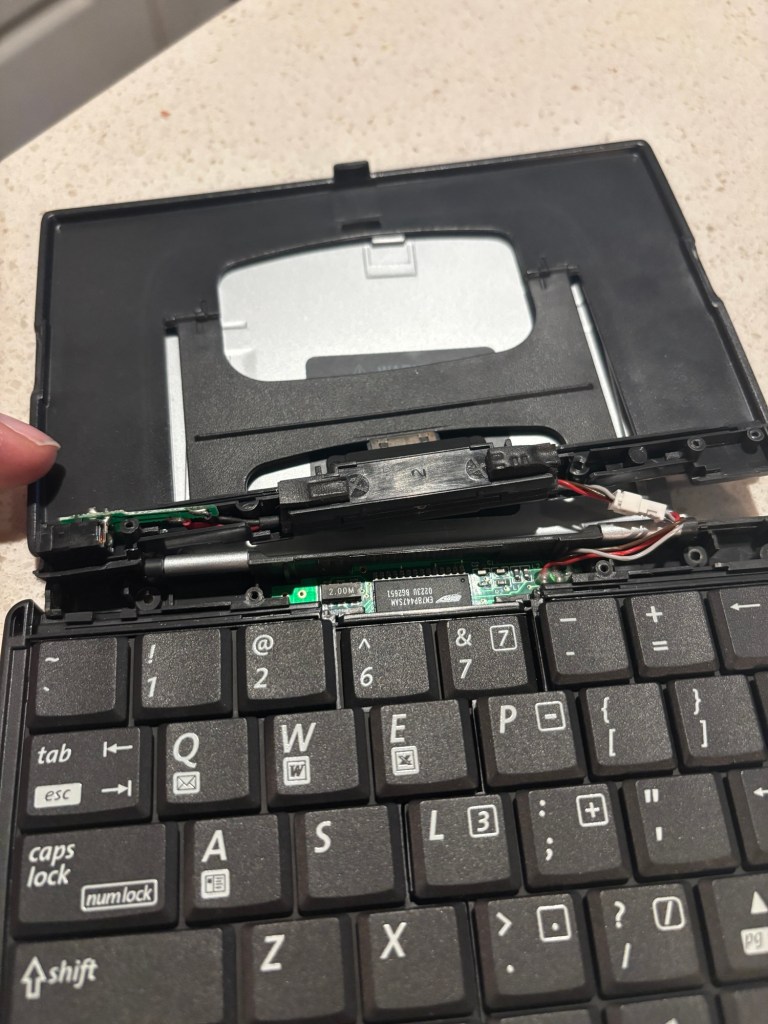

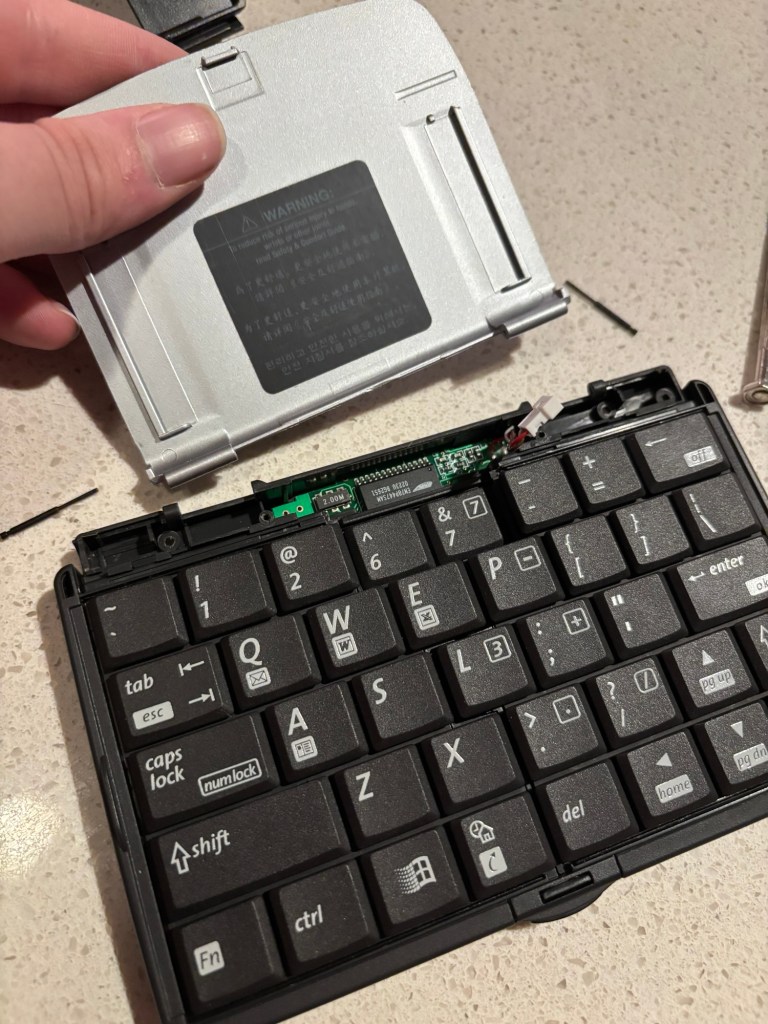

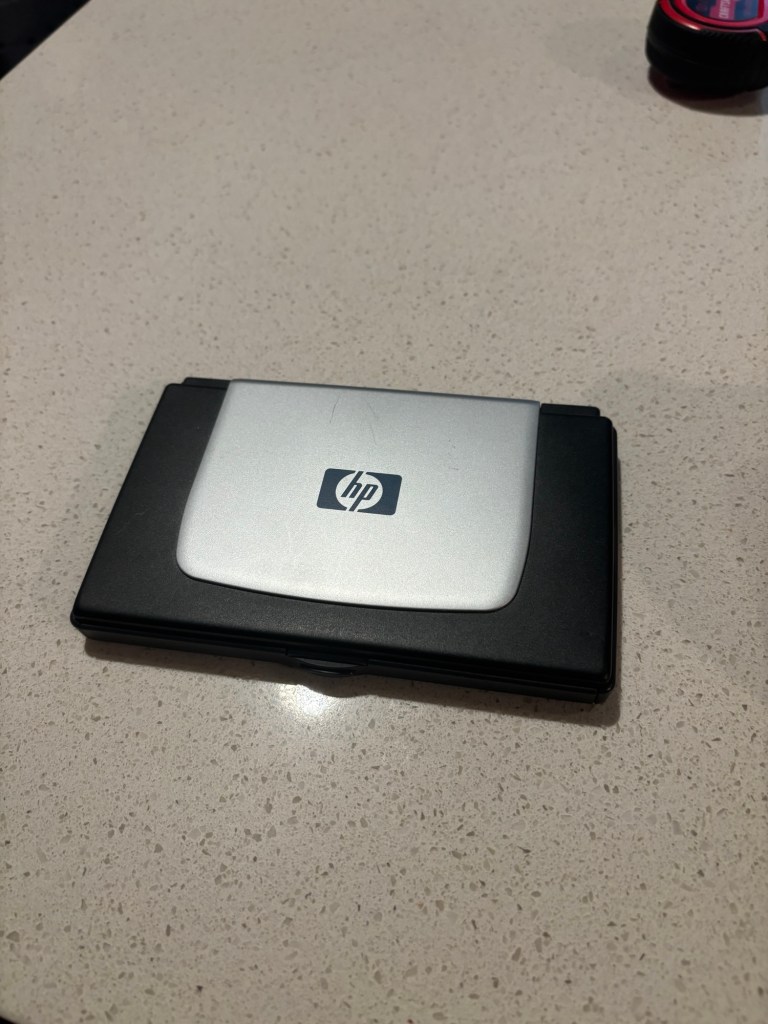

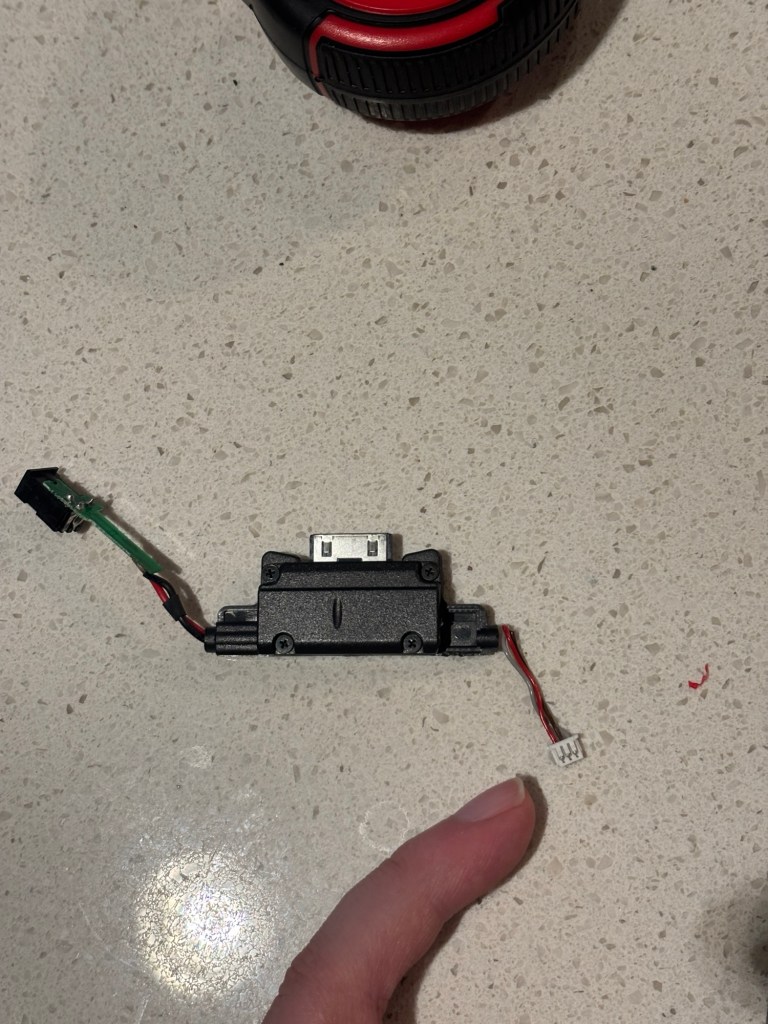

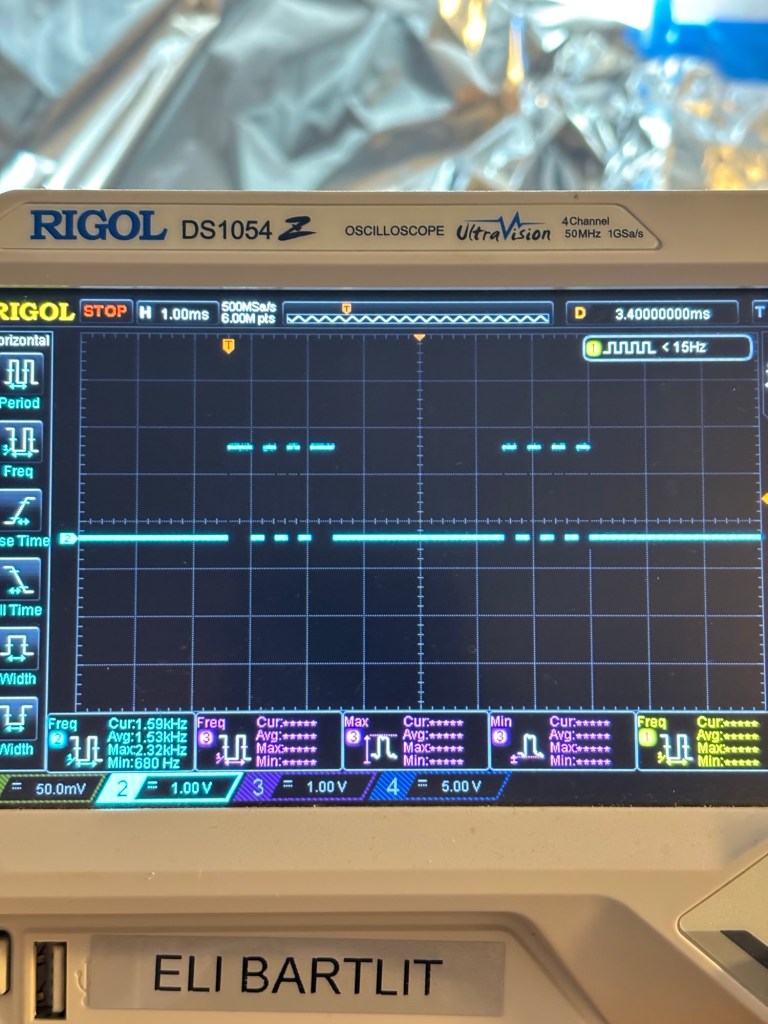

Compaq G750 Foldable keyboard (inverted TTL output broken out and top removed)

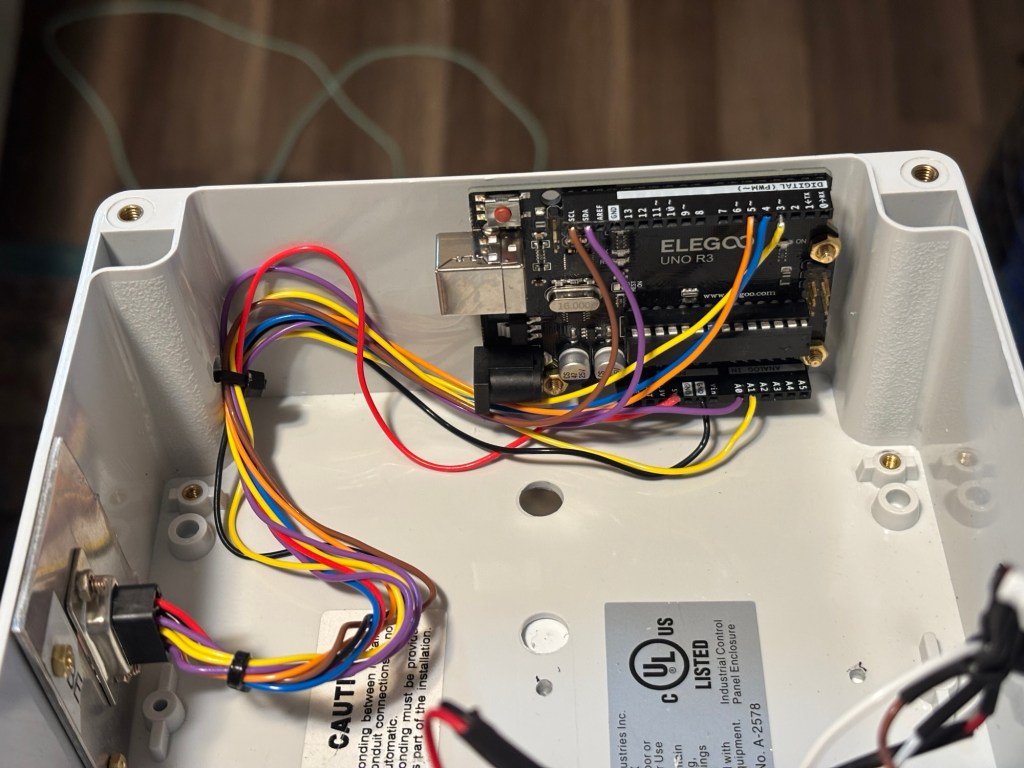

Arduino Uno + USB cable

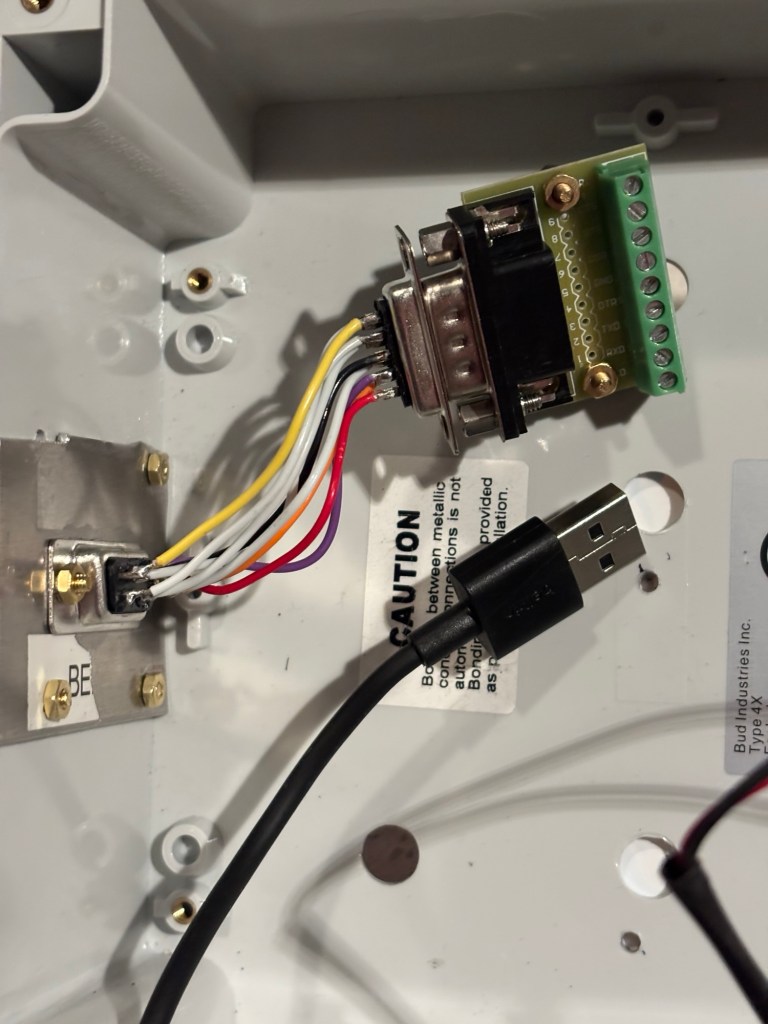

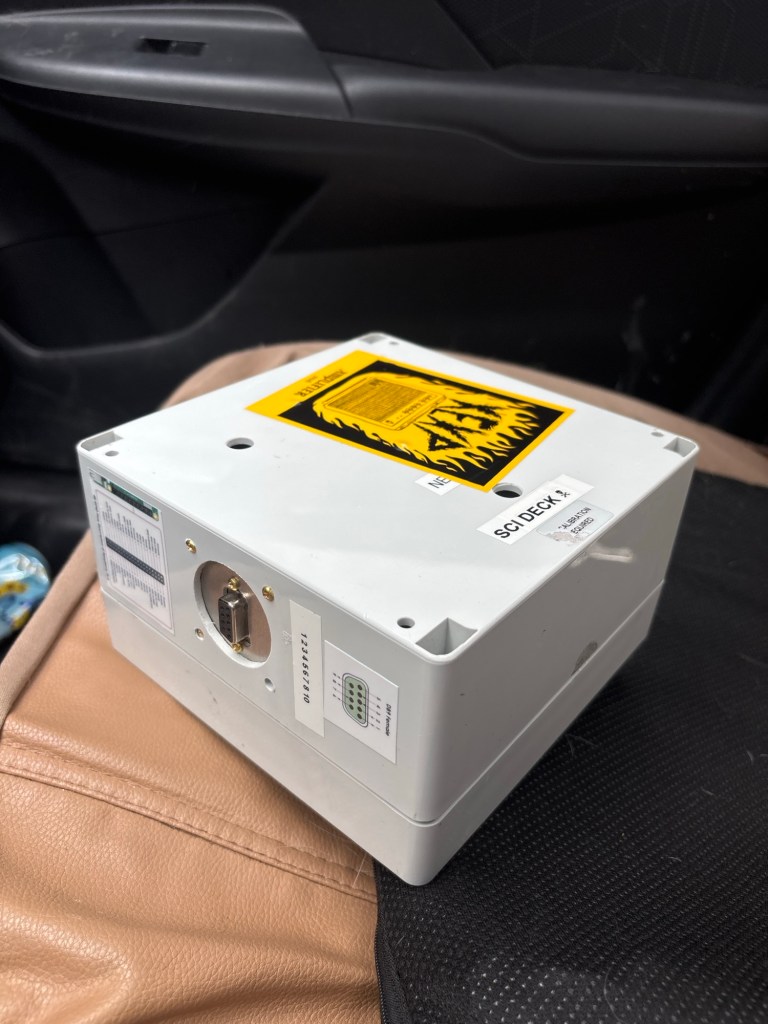

Dsub_9 socket (Arduino IO breakout port)
USB-C/USB-A panel mount port (Input power and single USB data transfer)
Software:

Keyboard translater Arduino Micro code:

#include <Keyboard.h>
#include <HashMap.h>
#include <SoftwareSerial.h>
#define checkKeyPress(keyInt, mapDown, mapUp) if (mapDown.contains(keyInt)) { char keyPressed = mapDown.valueAt(mapDown.indexOf(keyInt)); Serial.println("ACTION: " + String(keyPressed) + " DOWN"); Keyboard.press(keyPressed); cachedKeyData = ""; } if (mapUp.contains(keyInt)) { char keyPressed = mapUp.valueAt(mapUp.indexOf(keyInt)); Serial.println("ACTION: " + String(keyPressed) + " UP"); Keyboard.release(keyPressed); cachedKeyData = ""; }
SoftwareSerial keySerial(8, 9);
HashMap<long, char, 66> keyMapDown;
HashMap<long, char, 66> keyMapUp;
HashMap<long, char, 7> fnKeyMapDown;
HashMap<long, char, 7> fnKeyMapUp;
HashMap<long, char, 15> numLckKeyMapDown;
HashMap<long, char, 15> numLckKeyMapUp;
bool numLckMode = false;
bool fnMode = false;
long fnKeyDown = 0x2fd;
long fnKeyUp = 0x82fd;
long numLckKeyDown = 0x58a7;
long numLckKeyUp = 0xd8a7;
String cachedKeyData = "";
void keySetup() {
  //Number keys
  keyMapDown[0x16e9] = '1';
  keyMapUp[0x96e9] = '1';

  keyMapDown[0x1ee1] = '2';
  keyMapUp[0x9ee1] = '2';

  keyMapDown[0x26d9] = '3';
  keyMapUp[0xa6d9] = '3';

  keyMapDown[0x25da] = '4';
  keyMapUp[0xa5da] = '4';

  keyMapDown[0x2ed1] = '5';
  keyMapUp[0xaed1] = '5';

  keyMapDown[0x36c9] = '6';
  keyMapUp[0xb6c9] = '6';

  keyMapDown[0x3dc2] = '7';
  keyMapUp[0xbdc2] = '7';

  keyMapDown[0x3ec1] = '8';
  keyMapUp[0xbec1] = '8';

  keyMapDown[0x46b9] = '9';
  keyMapUp[0xc6b9] = '9';

  keyMapDown[0x45ba] = '0';
  keyMapUp[0xc5ba] = '0';

  //Letter keys
  keyMapDown[0x1ce3] = 'a';
  keyMapUp[0x9ce3] = 'a';

  keyMapDown[0x32cd] = 'b';
  keyMapUp[0xb2cd] = 'b';

  keyMapDown[0x21de] = 'c';
  keyMapUp[0xa1de] = 'c';

  keyMapDown[0x23dc] = 'd';
  keyMapUp[0xa3dc] = 'd';

  keyMapDown[0x24db] = 'e';
  keyMapUp[0xa4db] = 'e';

  keyMapDown[0x2bd4] = 'f';
  keyMapUp[0xabd4] = 'f';

  keyMapDown[0x34cb] = 'g';
  keyMapUp[0xb4cb] = 'g';

  keyMapDown[0x33cc] = 'h';
  keyMapUp[0xb3cc] = 'h';

  keyMapDown[0x43bc] = 'i';
  keyMapUp[0xc3bc] = 'i';

  keyMapDown[0x3bc4] = 'j';
  keyMapUp[0xbbc4] = 'j';

  keyMapDown[0x42bd] = 'k';
  keyMapUp[0xc2bd] = 'k';

  keyMapDown[0x4bb4] = 'l';
  keyMapUp[0xcbb4] = 'l';

  keyMapDown[0x3ac5] = 'm';
  keyMapUp[0xbac5] = 'm';

  keyMapDown[0x31ce] = 'n';
  keyMapUp[0xb1ce] = 'n';

  keyMapDown[0x44bb] = 'o';
  keyMapUp[0xc4bb] = 'o';

  keyMapDown[0x4db2] = 'p';
  keyMapUp[0xcdb2] = 'p';

  keyMapDown[0x15ea] = 'q';
  keyMapUp[0x95ea] = 'q';

  keyMapDown[0x2dd2] = 'r';
  keyMapUp[0xadd2] = 'r';

  keyMapDown[0x1be4] = 's';
  keyMapUp[0x9be4] = 's';

  keyMapDown[0x2cd3] = 't';
  keyMapUp[0xacd3] = 't';

  keyMapDown[0x3cc3] = 'u';
  keyMapUp[0xbcc3] = 'u';

  keyMapDown[0x2ad5] = 'v';
  keyMapUp[0xaad5] = 'v';

  keyMapDown[0x1de2] = 'w';
  keyMapUp[0x9de2] = 'w';

  keyMapDown[0x22dd] = 'x';
  keyMapUp[0xa2dd] = 'x';

  keyMapDown[0x35ca] = 'y';
  keyMapUp[0xb5ca] = 'y';

  keyMapDown[0x1ae5] = 'z';
  keyMapUp[0x9ae5] = 'z';
  //Symbol keys
  keyMapDown[0xef1] = '`';
  keyMapUp[0x8ef1] = '`';

  keyMapDown[0x4eb1] = '-';
  keyMapUp[0xceb1] = '-';

  keyMapDown[0x55aa] = '=';
  keyMapUp[0xd5aa] = '=';

  keyMapDown[0x4cb3] = ';';
  keyMapUp[0xccb3] = ';';

  keyMapDown[0x5da2] = '\'';
  keyMapUp[0xdda2] = '\'';
  // # key but mapping is wrong so has to be changed
  keyMapDown[0x52ad] = 92;
  keyMapUp[0xd2ad] = 92;

  keyMapDown[0x41be] = ',';
  keyMapUp[0xc1be] = ',';

  keyMapDown[0x49b6] = '.';
  keyMapUp[0xc9b6] = '.';

  keyMapDown[0x4ab5] = '/';
  keyMapUp[0xcab5] = '/';
  // \ key but mapping is wrong so has to be changed
  keyMapDown[0x748b] = 49;
  keyMapUp[0xf48b] = 49;
  keyMapDown[0x54ab] = '[';
  keyMapUp[0xd4ab] = '[';
  keyMapDown[0x5ba4] = ']';
  keyMapUp[0xdba4] = ']';
  //Special keys
  keyMapDown[0x718e] = KEY_BACKSPACE;
  keyMapUp[0xf18e] = KEY_BACKSPACE;

  keyMapDown[0x5ca3] = ' ';
  keyMapUp[0xdca3] = ' ';

  keyMapDown[0x58a7] = KEY_CAPS_LOCK;
  keyMapUp[0xd8a7] = KEY_CAPS_LOCK;

  keyMapDown[0x14eb] = KEY_LEFT_CTRL;
  keyMapUp[0x94eb] = KEY_LEFT_CTRL;

  keyMapDown[0x12ed] = KEY_LEFT_SHIFT;
  keyMapUp[0x92ed] = KEY_LEFT_SHIFT;

  keyMapDown[0x708f] = KEY_LEFT_ALT;
  keyMapUp[0xf08f] = KEY_LEFT_ALT;

  keyMapDown[0x7f8] = KEY_LEFT_GUI;
  keyMapUp[0x87f8] = KEY_LEFT_GUI;

  keyMapDown[0x738c] = KEY_RIGHT_CTRL;
  keyMapUp[0xf38c] = KEY_RIGHT_CTRL;

  keyMapDown[0x59a6] = KEY_RIGHT_SHIFT;
  keyMapUp[0xd9a6] = KEY_RIGHT_SHIFT;

  keyMapDown[0x11ee] = KEY_RIGHT_ALT;
  keyMapUp[0x91ee] = KEY_RIGHT_ALT;

  keyMapDown[0x6699] = KEY_DELETE;
  keyMapUp[0xe699] = KEY_DELETE;

  keyMapDown[0x5aa5] = KEY_RETURN;
  keyMapUp[0xdaa5] = KEY_RETURN;

  keyMapDown[0xdf2] = KEY_TAB;
  keyMapUp[0x8df2] = KEY_TAB;

  keyMapDown[0x28d7] = KEY_UP_ARROW;
  keyMapUp[0xa8d7] = KEY_UP_ARROW;

  keyMapDown[0x609f] = KEY_DOWN_ARROW;
  keyMapUp[0xe09f] = KEY_DOWN_ARROW;

  keyMapDown[0x5ea1] = KEY_LEFT_ARROW;
  keyMapUp[0xdea1] = KEY_LEFT_ARROW;

  keyMapDown[0x2fd0] = KEY_RIGHT_ARROW;
  keyMapUp[0xafd0] = KEY_RIGHT_ARROW;
  // Function keys
  fnKeyMapDown[0xdf2] = KEY_ESC;
  fnKeyMapUp[0x8df2] = KEY_ESC;

  fnKeyMapDown[0x718e] = 0;
  fnKeyMapUp[0xf18e] = 0;

  fnKeyMapDown[0x5aa5] = 0;
  fnKeyMapUp[0xdaa5] = 0;

  fnKeyMapDown[0x28d7] = KEY_PAGE_UP;
  fnKeyMapUp[0xa8d7] = KEY_PAGE_UP;

  fnKeyMapDown[0x609f] = KEY_PAGE_DOWN;
  fnKeyMapUp[0xe09f] = KEY_PAGE_DOWN;

  fnKeyMapDown[0x5ea1] = KEY_HOME;
  fnKeyMapUp[0xdea1] = KEY_HOME;

  fnKeyMapDown[0x2fd0] = KEY_END;
  fnKeyMapUp[0xafd0] = KEY_END;
  // Number lock keys
  numLckKeyMapDown[0x3dc2] = '7';
  numLckKeyMapUp[0xbdc2] = '7';

  numLckKeyMapDown[0x3ec1] = '8';
  numLckKeyMapUp[0xbec1] = '8';

  numLckKeyMapDown[0x46b9] = '9';
  numLckKeyMapUp[0xc6b9] = '9';

  numLckKeyMapDown[0x45ba] = '*';
  numLckKeyMapUp[0xc5ba] = '*';

  numLckKeyMapDown[0x3cc3] = '4';
  numLckKeyMapUp[0xbcc3] = '4';

  numLckKeyMapDown[0x43bc] = '5';
  numLckKeyMapUp[0xc3bc] = '5';

  numLckKeyMapDown[0x44bb] = '6';
  numLckKeyMapUp[0xc4bb] = '6';

  numLckKeyMapDown[0x4db2] = '-';
  numLckKeyMapUp[0xcdb2] = '-';

  numLckKeyMapDown[0x3bc4] = '1';
  numLckKeyMapUp[0xbbc4] = '1';

  numLckKeyMapDown[0x42bd] = '2';
  numLckKeyMapUp[0xc2bd] = '2';

  numLckKeyMapDown[0x4bb4] = '3';
  numLckKeyMapUp[0xcbb4] = '3';

  numLckKeyMapDown[0x4cb3] = '+';
  numLckKeyMapUp[0xccb3] = '+';

  numLckKeyMapDown[0x3ac5] = '0';
  numLckKeyMapUp[0xbac5] = '0';

  numLckKeyMapDown[0x49b6] = '.';
  numLckKeyMapUp[0xc9b6] = '.';

  numLckKeyMapDown[0x4ab5] = '/';
  numLckKeyMapUp[0xcab5] = '/';
}
/*
void checkKeyPress(long keyInt, HashMap mapDown, HashMap mapUp) {
  if (mapDown.contains(keyInt)) {
    char keyPressed = mapDown.valueAt(mapDown.indexOf(keyInt));
    Serial.println("ACTION: " + String(keyPressed) + " DOWN");
    Keyboard.press(keyPressed);
    cachedKeyData = "";
  }
  if (mapUp.contains(keyInt)) {
    char keyPressed = mapUp.valueAt(mapUp.indexOf(keyInt));
    Serial.println("ACTION: " + String(keyPressed) + " UP");
    Keyboard.release(keyPressed);
    cachedKeyData = "";
  }
}
*/
void checkKey() {
  String newCache = cachedKeyData;
  newCache.replace(",", "");

  char charBuf[50];
  newCache.toCharArray(charBuf, 50) ;

  long keyInt = strtol(charBuf, NULL, 16);
  if (fnMode) {
    checkKeyPress(keyInt, fnKeyMapDown, fnKeyMapUp);
    if (keyInt == numLckKeyDown) {
      numLckMode = !numLckMode;
      Serial.println("NUM LOCK KEY MODE TOGGLED");

      cachedKeyData = "";
    }

    if (keyInt == numLckKeyUp) {
      cachedKeyData = "";
    }
  }
  if (numLckMode) {
    checkKeyPress(keyInt, numLckKeyMapDown, numLckKeyMapUp);
  }
  if (keyInt == fnKeyDown) {
    fnMode = true;
    Serial.println("FUNCTION KEY MODE ON");
    cachedKeyData = "";
  }
  if (keyInt == fnKeyUp) {
    fnMode = false;
    Serial.println("FUNCTION KEY MODE OFF");
    cachedKeyData = "";
  }
  if (cachedKeyData != "") {
    checkKeyPress(keyInt, keyMapDown, keyMapUp);
  }
}
void setup() {
  keySetup();

  Keyboard.begin();

  Serial.begin(9600);
  keySerial.begin(4800);
  keySerial.listen();
  delay(2000);
  Serial.println("Starting...");
}
void loop() {
  if (keySerial.available()) {
    String keyData = String(keySerial.read(), HEX);
    if (cachedKeyData.length() < 1) {
      cachedKeyData = keyData;
    } else {
      cachedKeyData = cachedKeyData + "," + keyData;
    }

    Serial.println("JUST GOT: " + keyData);
    Serial.println("SO FAR: " + cachedKeyData);
    checkKey();
  }
  if (Serial.available()) {
    //keySerial.write(Serial.read());
    if (char(Serial.read()) == 'c') {
      cachedKeyData = "";
      Serial.println("CLEARED CACHE");
    }
  }
}
